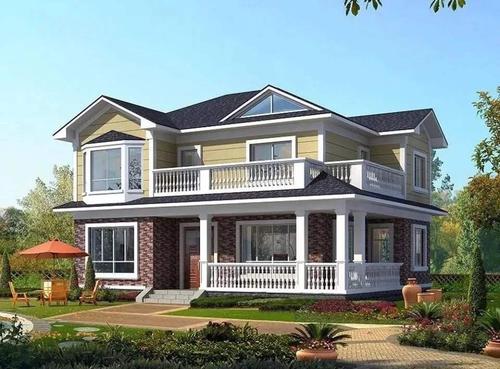

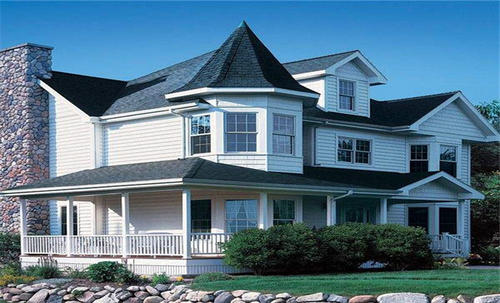

3D design villa home prefabricated light steel frame

Introduction Of Light Steel Frame Houses In Earthquake-prone Areas

The 3D Design Villa Home Prefabricated Light Steel Frame is revolutionizing the future of living through digital design. As an innovative pioneer in modular construction, we focus on deeply integrating 3D digital design with prefabricated light steel technology to provide disruptive architectural solutions for high-end residences, commercial complexes, and unique cultural and tourism projects.

I. Core Product Advantages: Materials, Parameters, and Differentiated Design

Structural System and Materials

The main structure is constructed of Q355B high-strength galvanized steel with a wall thickness of 1.2mm and a yield strength of ≥550MPa. Equipped with a sixth-generation hot-dip galvanizing process (120μm zinc layer), it withstands over 3000 hours of salt spray testing without rust. The wall system consists of a double-layer 89mm light steel keel, filled with 75mm fiberglass wool (bulk density ≥40kg/m³), and covered with 0.35mm moisture-proof breathable paper, forming a "sandwich" composite structure. Measurements by the China Academy of Building Research show that the wall's heat transfer coefficient is as low as 0.3W/(m2·K), meeting the highest national energy-saving standards and saving over 65% energy compared to traditional brick-concrete buildings. Empowered by 3D Design Technology

Using BIM 3D modeling and parametric design software, the project achieves full digitization from concept drawing to construction drawing. For example, the Hangzhou Future Community project utilizes an adjustable steel frame to achieve complex designs such as "floating staircases" and "panoramic floor-to-ceiling windows," increasing space utilization by 30% for a 120-square-meter apartment with an error tolerance of less than 3mm. The "Light Steel Villa DIY System" allows customers to freely combine six color palettes and 24 exterior modules, resulting in real-time rendering.

Ecosystem Integration and Performance Breakthroughs

Fast Construction: Modular components can be assembled on-site at a speed of up to 300 square meters per day. A demonstration project in Shanghai set a record by completing the main structure in just three days.

Intelligent Control: Integrated LoRa IoT modules enable remote control of temperature, humidity, lighting, and security systems via an app. Combined with double-layer galvanized steel panels and a glass wool interlayer, the project boasts thermal insulation performance that exceeds national standards by twice.

Renewable Energy: Optional solar photovoltaic panels (280W/square meter) and ground-source heat pumps reduce operating energy consumption by 40%.

II. Customized Service Process: Full-Life Cycle Management from Demand to Implementation

Demand Communication and Solution Design

A 3D visualization configuration tool is provided, allowing customers to online adjust functional areas (such as a raised living room or open kitchen), select materials (fluorocarbon sprayed aluminum panels or dark gray fluorocarbon paint), and special features (cantilevered viewing platforms or sunken courtyards). Our professional team will provide a design proposal within 48 hours, integrating BIM modeling to achieve millimeter-level accuracy.

Production and Logistics

Utilizing an intelligent production line, component machining accuracy is ±2mm. The production cycle is 25 days for standard modules and 35 days for custom modules. We support sea and land transport, provide reinforced transportation solutions for extra-wide components, and offer door-to-door delivery worldwide, with a breakage rate of less than 0.2%.

Installation and Acceptance

Our professional team completes module assembly within 72 hours and provides welding quality inspection reports (compliant with AWS D1.1 standards) and coating thickness test records (≥80μm). 32 quality inspections are completed before delivery, including a magnitude 8 seismic test, airtightness testing, and optical performance verification.

III. Corporate Strength: Certifications, Case Studies, and After-Sales Guarantee

Qualifications and Certifications

This project has received the China Steel Structure Gold Award, the EU CE certification, and the US UL 752 safety rating. The product is ISO 9001 quality management system certified and complies with the T/CCMSA 20108-2019 standard, achieving energy-saving performance of A++ according to GB/T29734.

References

Iceland's "Crooked Building" luxury resort: Inspired by an upturned shipping container, the building features transparent glass sides, offering 360-degree ocean views. It was named one of the "Top Ten Creative Hotels in the World."

Suzhou Ink Painting Courtyard: Combining steel structure with gray tiles and white walls, modern materials embody oriental aesthetics, with a construction period 60% shorter than traditional solutions.

Shandong Farmer Energy Saving Demonstration Project: Tests show that the indoor temperature in summer is 5°C lower than in brick-concrete houses, air conditioning usage time is reduced by half, and winter gas costs are reduced by 60%.

After-Sales Service: We offer a 50-year structural warranty, a 10-year equipment warranty, and 24-hour global fault response. Regular maintenance guidelines (such as coating inspection intervals and panel cleaning frequency) are provided to extend the product lifespan to over 50 years.

IV. Business Cooperation Policy: Transparent, Flexible, and Cost-Effective

Packaging and Logistics

Components are secured with steel strapping and internally protected with EPE cushioning film, resulting in a sea freight breakage rate of less than 0.3%. Temporary component storage is available at the warehouse, with 60-day free storage fees.

Minimum Order Quantity and Pricing

Performance Verification

Third-party testing reports (such as SGS energy-saving ratings and simulated vibration test data from the China Earthquake Administration) are available. Customers can schedule factory and model room visits to verify product performance.

Why Choose Us

Shijiazhuang Eiffel Steel Structure Co., Ltd.

Shijiazhuang Eiffel Steel Structure Co., Ltd. is an enterprise dedicated to researching and developing new energy-saving and environmentally friendly houses and construction methods. We always adhere to the values of honesty and quality first, and position ourselves as a leader in high-quality steel structure villa construction. We combine emerging foreign technologies with the actual domestic market and provide customers with one-stop services for prefabricated buildings such as design, production, interior decoration, and whole house customization. The prefabricated buildings produced by the company are widely used in office buildings, villas, rural courtyards, estate clubs, tourist attractions, homestays, hotels, public facilities, etc.

At present, the company is centered in Shijiazhuang, Hebei Province, with products radiating to regions such as Beijing, Tianjin, Hebei, Shanxi, Shandong, Henan, Liaoning, Mongolia, Jiangsu, Sichuan, and Guangxi, and exported to overseas markets. Adhering to the quality demand of "building a century old villa, choose Eiffel", we strive to create an excellent brand of prefabricated buildings.
